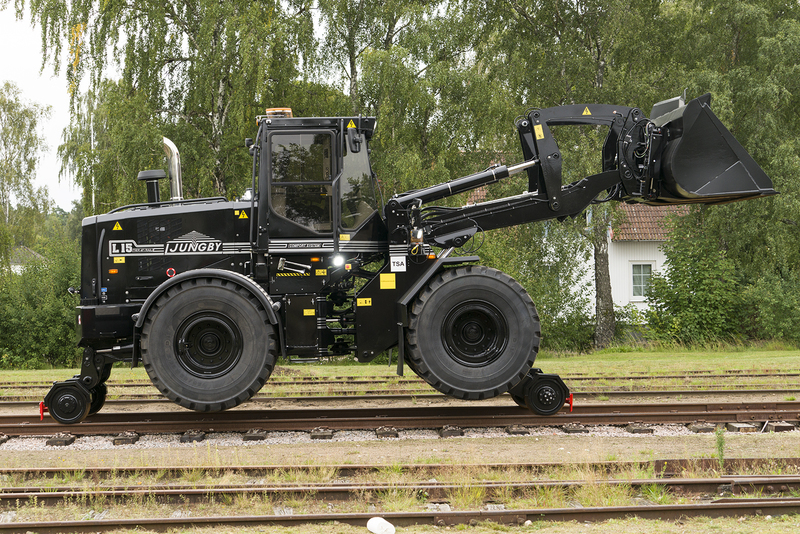

Ljungby Machine launches the first wheel loader, which has a railway design with a drive on the railway wheels.



We have developed this version as requested by our customers and the market who demand a wheel loader that meets the latest requirements for driving on the railways, a requirement that the railway owners gradually introduce.

In rail operation, the front rail wheels are driven by separate hydraulic motors with chain operation, which means that the rubber wheels do not need to drive or be in contact with the rails. When the rubber tire has contact with the rails it can prevent damage to track gear and other sensitive equipment around the rails.

The machine can also be run in track follower mode, and then all driving is done with the rubber wheels.
The ground clearance is 145 mm between rail and rubber wheels which is uniquely high.
The machine is cross-sectional.
The machine combines through unique intelligence, seamless operation between wheel drive and rail operation.
The railway operation can be disengaged when driving with rubber wheels.

The system is fully integrated into the machine construction, as well as custom and designed to maintain the same high technical performance and quality that our other designs are known for.
The system can be dismantled if the machine does not need to have rail function during some periods. Rear mounting points in the chassis can not be disassembled as these are integrated into the frame design of the machine, the front fasteners are removable. It guarantees high reliability and function.

With Ljungby Machine Rail System, we meet the requirements, as applicable, according to standard TDOK 2013 0001, TDOK 2013 0002, TDOK 2013 0004, TDOK 2013 0005 BVF 929, SS-EN 15746-1, SS-EN 15746-2 in addition to requirements and standards as normal required on wheel loaders without rail wheels.
The machines are delivered TSA approved and the customer inspects the machine for work in the respective track area.

All system control takes place from the cab and is controlled by the machine's control system.
The rear rail shaft has a unique commute function for optimal rail tracking, but can also be mechanically locked in the flat position.
On the rear wheel axle there is a towing device type fork looms for connection of trailer.
Load arm movement pattern for track operation is controlled by electrical supervision.
The control of articulation is automatically locked in rail operation.

Most of our normal options can be selected for "Ljungby Machine Rail System", which means that you tailor your machine to be optimal for you. Ex optional 220 kW motor (standard 170 kW), lockup function for more efficient road transport, cab suspension for optimal working environment, turning brackets, GPS leveling / navigation of the bucket.

Call your seller for more info.
For basic technical information see standard Ljungby wheel loader L15.



Other technical data:
Track width: 1435 mm
Rear wheel diameter: 450 mm
Axle spacing between rail shafts in the fallen railway position: 5785 mm
Max axle Limit on rail: 20,000 kg
Ground clearance raised railwheels: 430 mm
Ground clearance at railway operation: 145 mm
Tire Size: 750 / 65R25, brand Michelin or Bridgestone
Hydraulic motors 2 pcs 235 cc
Max speed in rail mode: 20 km / h (also in rubber-wheel drive)
Speed control via normal accelerator pedal in cab.
Function for maximum speed adjustable between 0-20 km / h via potentiometer.
Locking the normal rear axle swing in railing mode via hydraulic axle lock.
Commuting on the rear wheel axle shaft is in accordance with applicable requirements. (10 mm per meter c / c between railway axles)
Manual locking of the rear wheel axle shaft commutation is available
Brake system via rail wheel: integrated in hydraulic motor (travel and parking brake)
Braking via brake pedal in cab.
Emergency control and emergency lowering function included.
Load arm is delivered in long version, 250 mm extended.
Load arm movement pattern electrically restricted in railing mode
Quick connection lowerd 100 mm.
Automatic locking of shaft with commuting control in railing mode
Complies with the following standards: TDOK 2013 0001, TDOK 2013 0002, TDOK 2013 0004, TDOK 2013 0005 BVF 929, SS-EN 15746-1, SS-EN 15746-2
The machine is cross-sectional.
Movable fork load with maximum draw weight: 5000 kg
The fork load can not withstand any vertical load
Fork pull pin diameter: 45 mm
Height of cab in railing mode, measure from rail to roof top: Active cab suspension 3700 mm, Inactive cab suspension: 3600 mm

Height of cabin when rubber wheels are in contact with rail: Active cabin suspension 3450 mm, Inactive cabin suspension: 3350 mm
Length measure A
        * Normal mode: 7400 mm
        * Rear position: 8700 mm
        * Length measuring outer edges of rail shafts (including protection) 6400 mm.
Total width with 750 wheels: 2850 mm

Suitable accessories:
Swivel bracket with lowered attachment, the machine has a standard fixed mounting bracket that is 100 mm lower.
Registration, the machine is only TSA approved by default.
